NVIDIA® Jetson Thor™ Carrier (155×125 mm)

Description
Specifications
Ordering Guide

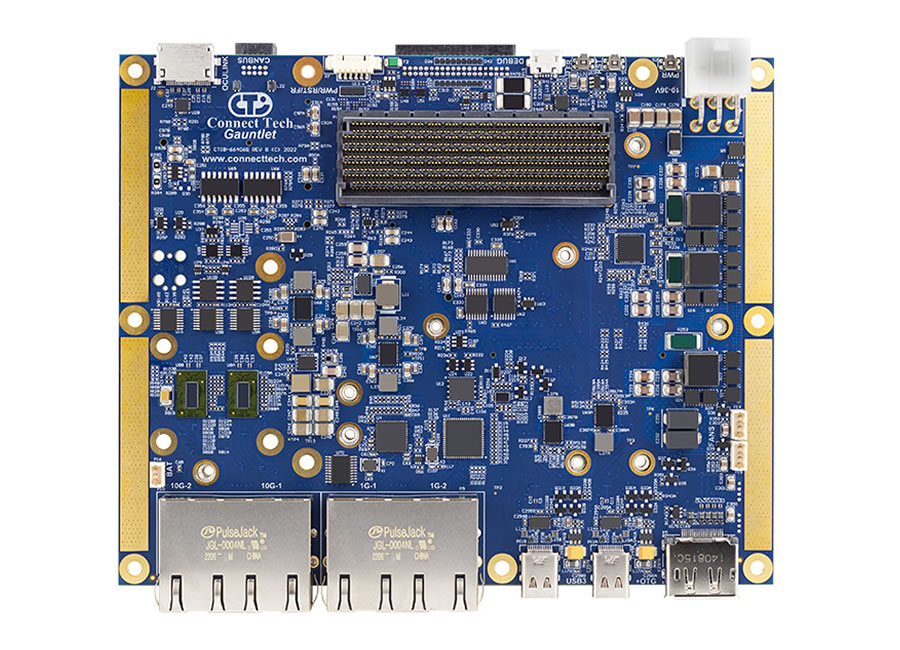

Purpose-built for the NVIDIA® Jetson Thor™ Series Modules, Connect Tech’s Gauntlet Carrier Board delivers industrial-grade performance, ultra-fast networking, and advanced sensor integration – engineered to accelerate the next generation of physical AI, robotics, autonomy, and AI at the edge.

With a comprehensive suite of interfaces and expansion options, Gauntlet unlocks the performance of NVIDIA’s Blackwell GPU.

Gauntlet is fully compatible with Connect Tech’s vision-ready platforms, enabling developers to quickly deploy full-stack AI systems with diverse imaging requirements.

Compact. Rugged. Deployable. Gauntlet connects the future of robotics.

Compatibility	NVIDIA® Jetson Thor™
Networking	2x 10GBASE-T (10G Ethernet) 2x 1000BASE-T (1G Ethernet)
Display	1x DisplayPort
Camera Inputs	1x 16-Lane MIPI Expansion Connector Interface directly to a range of GMSL3, GMSL2, FPD-Link III, SDI, and MIPI CSI-2 image sensors
USB	1x USB 3.2 Ports (Type-C – OTG Capable) 1x USB 3.2 Ports (Type-C)
Storage	2x M.2 Key M 2280 NVMe (1x 4 Lane PCIe Gen3, 1x 2 Lane PCIe Gen 3)
UART	2x @ 3.3V levels UART 2x RS-232/485 UARTs
I2C/SPI	2x I2C Channel @ 3.3V IO 2x SPI Channel @ 3.3V IO
CAN	4x CAN 2.0b Port (non-isolated)
GPIO	4x 3.3V GPI Inputs 6x 3.3V GPO Outputs (2xPWM Capable) 1x 3.3V Power Pin at 1A
User Expansion	1x M.2 Key E 2230 Wifi/BT (PCIe/USB2) 1x M.2 Key B 3042/3052 (LTE/5G – USB3) with Micro SIM
Input Power	+30V to +60V DC Wide Input Power (6-Pin Mini-Fit Jr. Connector)
Dimensions	155mm x 125mm
Operating Temperature	-40°C to +85°C (-40°F to +185°F)

Part Number	Description
AGX301	Gauntlet Carrier Board for NVIDIA® Jetson AGX Thor™
